Spring) Tiles 사용해보기

wasupup 2021. 8. 13. 16:08
반응형

JSP : Template : 동적배치

Spring : Tiles : 동적배치



new project name : tilestest

package nema : co.kr.tilestest

pom.xml

		<!-- tiles -->
		<dependency>
			<groupId>org.apache.tiles</groupId>
			<artifactId>tiles-jsp</artifactId>
			<version>2.2.2</version>
		</dependency>

		<!-- tiles-core -->
		<dependency>
			<groupId>org.apache.tiles</groupId>
			<artifactId>tiles-core</artifactId>
			<version>2.2.2</version>
		</dependency>

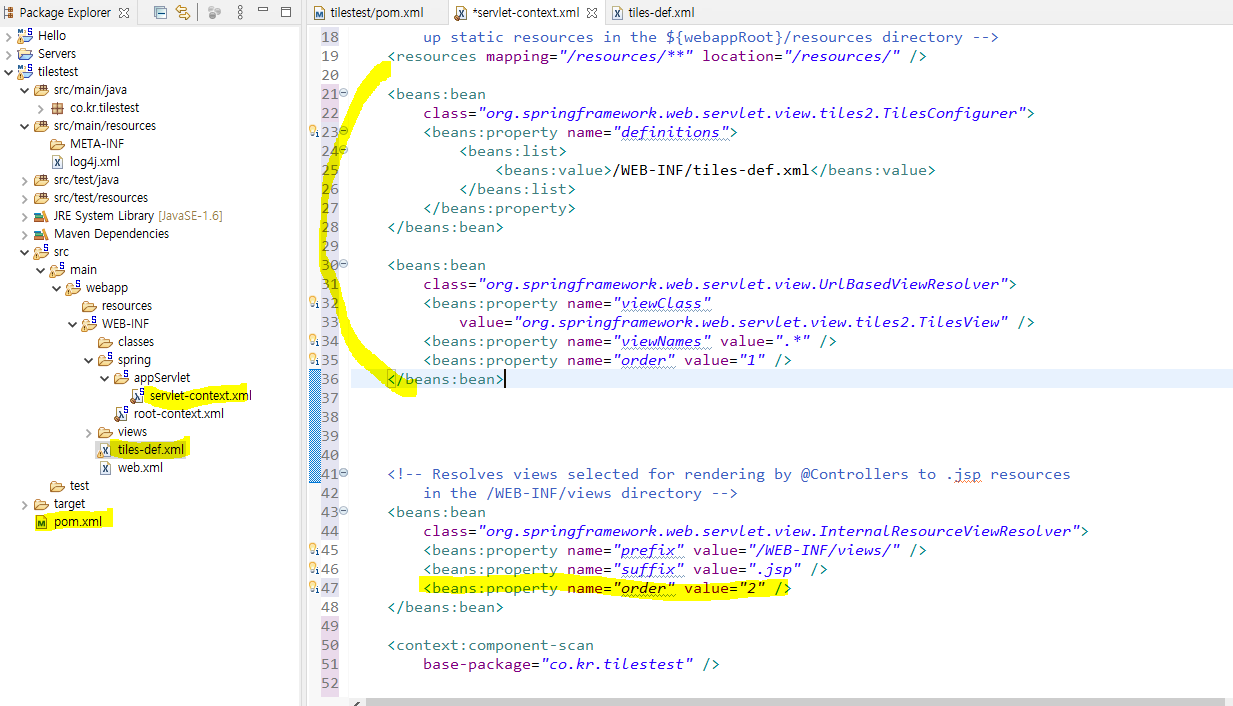

servlet-content.xml

org.springframework.web.servlet.view.tiles2.TilesConfigurer

<?xml version="1.0" encoding="UTF-8"?>
<beans:beans
	xmlns="http://www.springframework.org/schema/mvc"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xmlns:beans="http://www.springframework.org/schema/beans"
	xmlns:context="http://www.springframework.org/schema/context"
	xsi:schemaLocation="http://www.springframework.org/schema/mvc https://www.springframework.org/schema/mvc/spring-mvc.xsd
		http://www.springframework.org/schema/beans https://www.springframework.org/schema/beans/spring-beans.xsd
		http://www.springframework.org/schema/context https://www.springframework.org/schema/context/spring-context.xsd">

	<!-- DispatcherServlet Context: defines this servlet's request-processing
		infrastructure -->

	<!-- Enables the Spring MVC @Controller programming model -->
	<annotation-driven />

	<!-- Handles HTTP GET requests for /resources/** by efficiently serving
		up static resources in the ${webappRoot}/resources directory -->
	<resources mapping="/resources/**" location="/resources/" />

	<beans:bean
		class="org.springframework.web.servlet.view.tiles2.TilesConfigurer">
		<beans:property name="definitions">
			<beans:list>
				<beans:value>/WEB-INF/tiles-def.xml</beans:value>
			</beans:list>
		</beans:property>
	</beans:bean>

	<beans:bean
		class="org.springframework.web.servlet.view.UrlBasedViewResolver">
		<beans:property name="viewClass"
			value="org.springframework.web.servlet.view.tiles2.TilesView" />
		<beans:property name="viewNames" value=".*" />
		<beans:property name="order" value="1" />
	</beans:bean>




	<!-- Resolves views selected for rendering by @Controllers to .jsp resources
		in the /WEB-INF/views directory -->
	<beans:bean
		class="org.springframework.web.servlet.view.InternalResourceViewResolver">
		<beans:property name="prefix" value="/WEB-INF/views/" />
		<beans:property name="suffix" value=".jsp" />
		<beans:property name="order" value="2" />
	</beans:bean>

	<context:component-scan
		base-package="co.kr.tilestest" />



</beans:beans>

/WEB-INF/tiles-def.xml

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE tiles-definitions PUBLIC
   "-//Apache Software Foundation//DTD Tiles Configuration 2.1//EN"
   "http://tiles.apache.org/dtds/tiles-config_2_1.dtd">

<tiles-definitions>
   <definition name=".main.layout" template="/WEB-INF/views/layout.jsp">
      <put-attribute name="header" value="/WEB-INF/views/header.jsp"/>
      <put-attribute name="side" value="/WEB-INF/views/side.jsp"/>
      <put-attribute name="content" value="/WEB-INF/views/board/list.jsp"/>
      <put-attribute name="footer" value="/WEB-INF/views/footer.jsp"/>
   </definition>

   <definition name=".main.*.*" extends=".main.layout">
      <put-attribute name="content" value="/WEB-INF/views/{1}/{2}.jsp"/>
   </definition>
</tiles-definitions>

만들 layout 목록

<definition name=".main.layout" template="/WEB-INF/views/layout.jsp">
      <put-attribute name="header" value="/WEB-INF/views/header.jsp"/>
      <put-attribute name="side" value="/WEB-INF/views/side.jsp"/>
      <put-attribute name="content" value="/WEB-INF/views/board/list.jsp"/>
      <put-attribute name="footer" value="/WEB-INF/views/footer.jsp"/>
</definition>

header.jsp

<%@ page language="java" contentType="text/html; charset=UTF-8"
    pageEncoding="UTF-8"%>
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>header</title>
</head>
<body>
<h2 align="center"></h2>
<table boarder="0" style="width:100%;min-width:60%">
	<tr>
		<td align="left">
			<a href="/tilestest/" style="text-decoration:none;">
				<img srd="resources/logo.png" alt="로고"/>
			</a>
		</td>
	</tr>
</table>
<td align="right">
	<a href="/tilestest/board/list.do">게시판</a>
	<a href="">q&a</a>
	<a href="">faq</a>
	<a href="">공지사항</a>
	<a href="/tilestest/insertForm.do">회원가입</a>
	<a href="/tilestest/loginForm.do">로그인</a>
</td>
</body>
</html>

side.jsp

<%@ page language="java" contentType="text/html; charset=UTF-8"
    pageEncoding="UTF-8"%>
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>side</title>
</head>
<body>
	<a href="/tilestest/board/list.do">게시판</a><br/>
	<a href="">q&a</a><br/>
	<a href="">faq</a><br/>
	<a href="">공지사항</a><br/>
	<a href="/tilestest/insertForm.do">회원가입</a><br/>
	<a href="/tilestest/loginForm.do">로그인</a>
</body>
</html>

footer.jsp

<%@ page language="java" contentType="text/html; charset=UTF-8"
    pageEncoding="UTF-8"%>
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>footer</title>
</head>
<body>
<table boarder="0" style="width:100%;min-width:60%">
	<tr>
		<td>
			본 사이트는 무단으로 복제하는 것을 허용하지 않습니다.
			&nbsp;
			tel : 000-0000-0000
			&nbsp;
			관리자 : 임나연
			&nbsp;

		</td>
	</tr>
</table>
<td align="right">
	<a href="/tilestest/board/list.do">게시판</a>
	<a href="">q&a</a>
	<a href="">faq</a>
	<a href="">공지사항</a>
	<a href="/tilestest/insertForm.do">회원가입</a>
	<a href="/tilestest/loginForm.do">로그인</a>
</td>
</body>
</html>

board/list.jsp

<%@ page language="java" contentType="text/html; charset=UTF-8"
    pageEncoding="UTF-8"%>
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>list</title>
</head>
<body>
list<br/>
list<br/>
list<br/>
list<br/>
list<br/>
list<br/>
list<br/>
list<br/>
list<br/>
list<br/>
</body>
</html>

layout.jsp

<%@ page language="java" contentType="text/html; charset=UTF-8"
    pageEncoding="UTF-8"%>
<%@ taglib prefix="tiles" uri="http://tiles.apache.org/tags-tiles" %>
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>layout</title>
</head>
<body>
<table board="1" style="width:100%;min-width:60%;">
	<tr>
		<td colspan="2" height="60" bgcolor="cyan">
			<tiles:insertAttribute name="header"></tiles:insertAttribute>
		</td>
	</tr>
	<tr>
		<td></td>
		<td></td>
	</tr>
	<tr>
		<td></td>
	</tr>
</table>
</body>
</html>



참고링크 :

타일즈?

https://epthffh.tistory.com/entry/%EC%8A%A4%ED%94%84%EB%A7%81-%ED%83%80%EC%9D%BC%EC%A6%88-Spring-Tile-%EC%84%A4%EC%A0%95%ED%95%B4%EB%B3%B4%EA%B8%B0



다른버전

https://qh5944.tistory.com/105
