Spring Legacy MiNi Project - STS / tiles 적용

1. 툴 다운로드

sts : ( https://spring.io/tools )

2. 미니 프로젝트

2-1. Spring Legacy MiNi Project

- member java

- member view

- board java

- board view

- tails 적용

2-2. Spring Boot MiNi Project

2-3 eGov

---

Project Name : slp(spring legacy project) 회원관리, 게시판

개발환경

• window10
• tomcat8.5
• mysql 5.5
• java version 1.8.0_40
• sts3
• jdbc 3.2.3
• myBatis 3.2.8

개발언어

• java, spring, jsp
• jsjq
• html5, css3



---

STS3(Spring Tool Suite3)-spring legacy project

: 이전부터 사용되어온 주 시스템(core, bases)

: Spring Legacy Project는 STS3까지 지원

: STS4부터는 Spring Boot가 기본

: STS4에서 Spring Legacy Project를 사용하기 위해서는 지원 플러그인을 따로 설치해서 사용

참고 링크 - ( https://woopi1087.tistory.com/26 )

참고 링크 - ( https://developsd.tistory.com/68 )

---

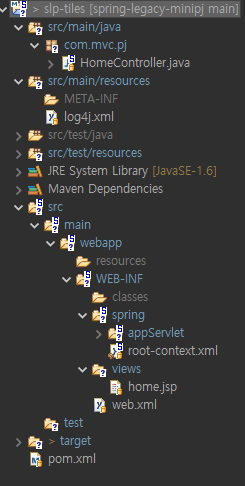

0_) 새프로젝트 생성

new project name : slp-tiles / package : com.mvc.pj

1_) pom.xml 설정

추가할 내용

		<!-- MyBatis -->
		<dependency>
			<groupId>org.mybatis</groupId>
			<artifactId>mybatis</artifactId>
			<version>3.2.8</version>
		</dependency>

		<!-- mybatis-spring -->
		<dependency>
			<groupId>org.mybatis</groupId>
			<artifactId>mybatis-spring</artifactId>
			<version>1.2.2</version>
		</dependency>

		<!-- Mysql -->
		<dependency>
			<groupId>mysql</groupId>
			<artifactId>mysql-connector-java</artifactId>
			<version>5.1.31</version>
		</dependency>

		<!--spring-jdbc -->
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-jdbc</artifactId>
			<version>3.2.3.RELEASE</version>
		</dependency>

		<!-- tiles -->
		<dependency>
			<groupId>org.apache.tiles</groupId>
			<artifactId>tiles-jsp</artifactId>
			<version>2.2.2</version>
		</dependency>

		<!-- tiles-core -->
		<dependency>
			<groupId>org.apache.tiles</groupId>
			<artifactId>tiles-core</artifactId>
			<version>2.2.2</version>
		</dependency>

---

2_) root-context.xml 수정

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://www.springframework.org/schema/beans https://www.springframework.org/schema/beans/spring-beans.xsd">

	<bean id="dataSource"
		class="org.apache.ibatis.datasource.pooled.PooledDataSource">
		<property name="driver" value="com.mysql.jdbc.Driver" />
		<property name="url" value="jdbc:mysql://localhost:3306/community" />
		<property name="username" value="root" />
		<property name="password" value="1234" />
	</bean>

	<bean id="transactionManager"
		class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
		<property name="dataSource" ref="dataSource"></property>
	</bean>

	<bean id="sqlSessionFactory"
		class="org.mybatis.spring.SqlSessionFactoryBean">
		<property name="dataSource" ref="dataSource"></property>
		<property name="configLocation"
			value="classpath:/mybatis/mybatis-config.xml">
		</property>
	</bean>
	<bean id="sqlSession"
		class="org.mybatis.spring.SqlSessionTemplate">
		<constructor-arg ref="sqlSessionFactory"></constructor-arg>
	</bean>

</beans>

---

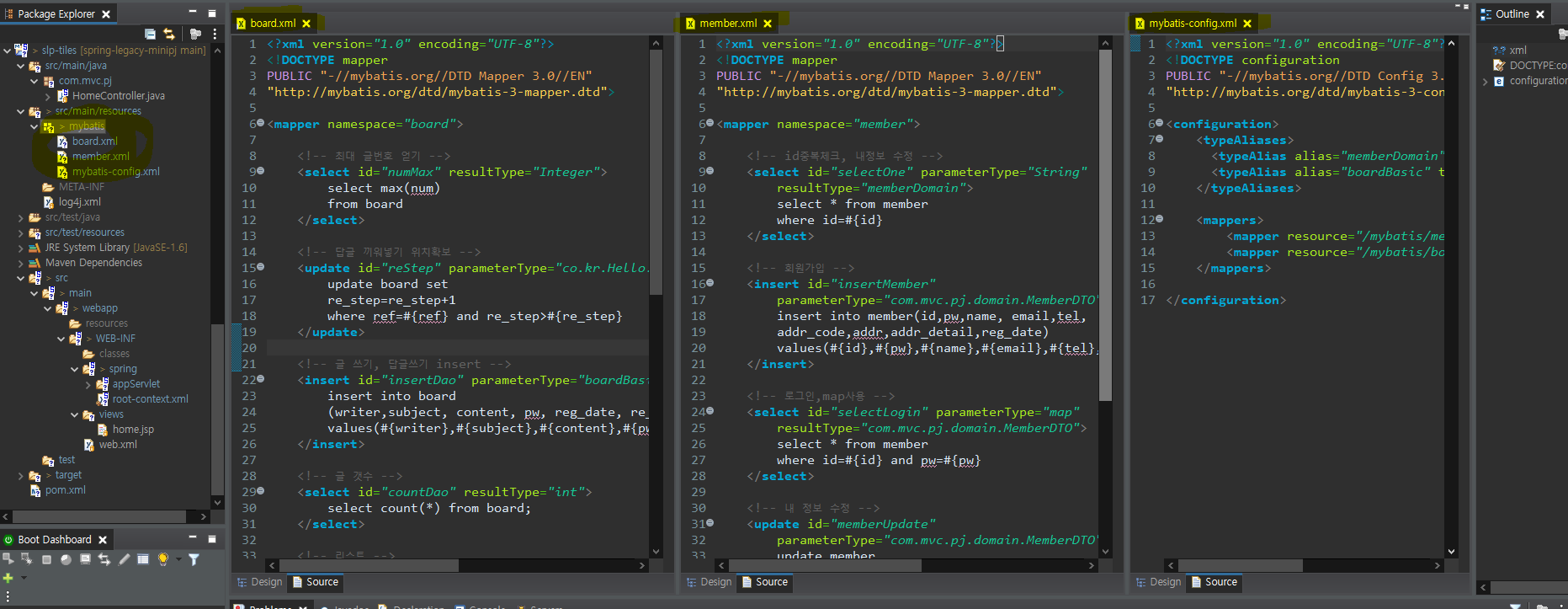

3_) src/main/resources/mybatis 작성(복사)

---

4_1) src/main/java/ 패키지 생성

com.mvc.pj.domain : MemberDTO.java, BoardDTO.java

com.mvc.pj.controller : MemberController.java, BoardController.java

4_2) src/main/resources/mybatis의 하위.xml 패키지명 수정

: 3_)번과 연결

5_) view하위의 member폴더와 board폴더 작성(복사)

: 수정사항 없으면 패스

6_) 타일즈 프로젝트의 pom.xml 설정 가져오기

<!-- tiles -->
		<dependency>
			<groupId>org.apache.tiles</groupId>
			<artifactId>tiles-jsp</artifactId>
			<version>2.2.2</version>
		</dependency>

		<!-- tiles-core -->
		<dependency>
			<groupId>org.apache.tiles</groupId>
			<artifactId>tiles-core</artifactId>
			<version>2.2.2</version>
		</dependency>

7_) tiles 프로젝트의 servlet-context.xml 설정 가져오기

<?xml version="1.0" encoding="UTF-8"?>
<beans:beans
	xmlns="http://www.springframework.org/schema/mvc"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xmlns:beans="http://www.springframework.org/schema/beans"
	xmlns:context="http://www.springframework.org/schema/context"
	xsi:schemaLocation="http://www.springframework.org/schema/mvc https://www.springframework.org/schema/mvc/spring-mvc.xsd
		http://www.springframework.org/schema/beans https://www.springframework.org/schema/beans/spring-beans.xsd
		http://www.springframework.org/schema/context https://www.springframework.org/schema/context/spring-context.xsd">

	<!-- DispatcherServlet Context: defines this servlet's request-processing
		infrastructure -->

	<!-- Enables the Spring MVC @Controller programming model -->
	<annotation-driven />

	<!-- Handles HTTP GET requests for /resources/** by efficiently serving
		up static resources in the ${webappRoot}/resources directory -->
	<resources mapping="/resources/**" location="/resources/" />

	<beans:bean
		class="org.springframework.web.servlet.view.tiles2.TilesConfigurer">
		<beans:property name="definitions">
			<beans:list>
				<beans:value>/WEB-INF/tiles-def.xml</beans:value>
			</beans:list>
		</beans:property>
	</beans:bean>

	<beans:bean
		class="org.springframework.web.servlet.view.UrlBasedViewResolver">
		<beans:property name="viewClass"
			value="org.springframework.web.servlet.view.tiles2.TilesView" />
		<beans:property name="viewNames" value=".*" />
		<beans:property name="order" value="1" />
	</beans:bean>

	<!-- Resolves views selected for rendering by @Controllers to .jsp resources
		in the /WEB-INF/views directory -->
	<beans:bean
		class="org.springframework.web.servlet.view.InternalResourceViewResolver">
		<beans:property name="prefix" value="/WEB-INF/views/" />
		<beans:property name="suffix" value=".jsp" />
		<beans:property name="order" value="2" />
	</beans:bean>

	<context:component-scan
		base-package="com.mvc.pj" />



</beans:beans>

8_) tiles 프로젝트의 tiles-def.xml가져오기

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE tiles-definitions PUBLIC
   "-//Apache Software Foundation//DTD Tiles Configuration 2.1//EN"
   "http://tiles.apache.org/dtds/tiles-config_2_1.dtd">

<tiles-definitions>
   <definition name=".main.layout" template="/WEB-INF/views/layout.jsp">
      <put-attribute name="header" value="/WEB-INF/views/header.jsp"/>
      <put-attribute name="side" value="/WEB-INF/views/side.jsp"/>
      <put-attribute name="content" value="/WEB-INF/views/list.jsp"/>
      <put-attribute name="footer" value="/WEB-INF/views/footer.jsp"/>
   </definition>

   <definition name=".main.*.*" extends=".main.layout">
      <put-attribute name="content" value="/WEB-INF/views/{1}/{2}.jsp"/>
   </definition>
</tiles-definitions>

9_) tiles 프로젝트의 view하위의 header, side, footer, layout 작성(가져오기)



10_) Controller 수정

HomeComtroller.java

//return "home";
return ".main.layout";

BoardController.java수정

//return "board/writeForm";// View return writeForm.jsp
return ".main.board.writeForm"; // View return

//return "board/list"; // View return list.jsp
return ".main.board.list"; // View return

//return "board/content"; //view return content.jsp
return ".main.board.content"; // View return

//mv.setViewName("board/updateForm");//updateForm.jsp
mv.setViewName(".main.board.updateForm");//View return

MemberComtroller.java수정

//return "main";//뷰 리턴  //views/main.jsp
return ".main.layout";//View return

//return "/member/insertForm";//views/member/insertForm.jsp
return ".main.member.insertForm";// View return

//return "main";//뷰 리턴
return ".main.layout";//View return

//return "member/loginForm";//views/member/loginForm.jsp  뷰를 리턴
return ".main.member.loginForm";

//return "/member/loginForm";//뷰 리턴 loginForm.jsp
return ".main.member.loginForm";//View return

//return "member/loginSucess";//loginSucess.jsp 뷰리턴
return ".main.member.loginSucess";//View Return

//return "/member/logOut";//뷰 리턴 logOut.jsp
return ".main.member.logOut";//View Return

//return "/member/updateForm";//뷰리턴     updateForm.jsp
return ".main.member.updateForm";//View Return

//return "main";//뷰 리턴
return ".main.layout";//View Return

//return "main";//뷰 리턴
return ".main.layout";//View Return

11_) resources 파일 가져오기
